China Manufacturer & Supplier Of Rod-type Immersible Transducers

  Hollow Ultrasonic Rod Transducers
  Solid Ultrasonic Rod Transducers


Ultrasonic Rod Transducers



Ultrasonic Rod Transducers are mainly suitable for traditional chinese medicine extraction, cleaning of metal pipeline, on-line ultrasonic anti-scaling for boiler, vacuum / pressure ultrasonic cleaning, various pipeline ultrasonic chemical treatment.



• Feature

- Ultrasonic cavitation generated around the rod transducer, ultrasonic energy is distributed around the rod.
- The output power of ultrasonic rod transducers is not affected by the change of liquid level,tank capacity and temperature, output power is stable and uniform;
- In compare to vibration Boxes, the service life of ultrasonic rod transducers is more than 1.5 times;
- The rod type design of ultrasonic rod transducers can make easy to install and use;
- Sealing and waterproofing for safe use;


• Solid Ultrasonic Rod Transducer

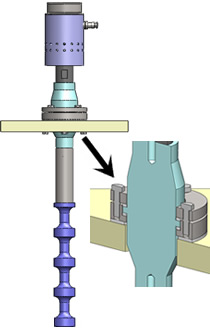

1) YTSB-1800-20S Ultrasonic Rod Transducer
solid ultrasonic rod
Solid Ultrasonic Rod


- Dimension:
· Total length: 965mm
· Tool head length: 480mm
· Maximum diameter: 91mm
· Tool head diameter: 50mm

- Power:
· Ultrasonic peak power: 1800W
· Electric power: 200W
· Input voltage: 220V 50HZ

- Frequency: 20KHZ

- Quantity of transducer: One

- Environment requirement:
· Temperature: 0 ~ 50 ℃
· Relative humidity: Less than 85%

- Tool head material: Titanium alloy

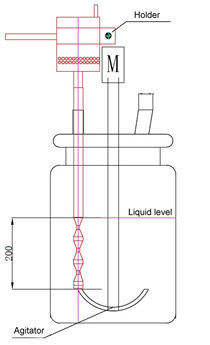

2) YTSB-800-20S Ultrasonic Rod Transducer
Solid Ultrasonic Rod
Solid Ultrasonic Rod


- Dimension:
· Total length: 790mm
· Tool head length: 200mm
· Maximum diameter: 120mm
· Tool head diameter: 26mm

- Power:
· Ultrasonic peak power: 800W
· Electric power: 100W
· Input voltage: 220V 50HZ

- Frequency: 20KHZ

- Quantity of transducer: One

- Environment requirement:
· Temperature: 0 ~ 50 ℃
· Relative humidity: Less than 85%

- Tool head material: Titanium alloy



※ Solid ultrasonic rod can be used in any occasions, the diameter of ultrasonic rod can be adjusted to meet the requirement of customer, but the length of tool head can't be more than 700mm.



• Hollow Ultrasonic Rod Transducer

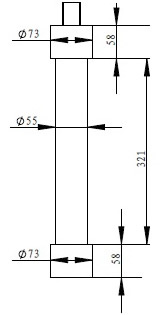

1) YTSB-1000-26G Ultrasonic Rod Transducer
hollow ultrasonic rod
Hollow Ultrasonic Rod


- Dimension:
· Total length: 437mm
· Maximum diameter: 73mm

- Power:
· Ultrasonic peak power: 1000W
· Electric power: 400W
· Input voltage: 220V 50HZ

- Frequency: 26KHZ

- Quantity of transducer: Two

- Environment requirement:
· Temperature: 0 ~ 50 ℃
· Relative humidity: Less than 85%
· Working pressure: Less than 0.6 Mpa

- Meterial: Stainless steel 304/316L

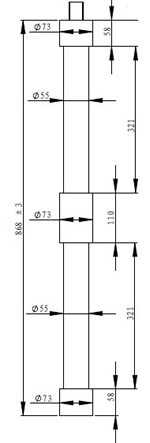

2) YTSB-2000-26G Ultrasonic Rod Transducer
hollow ultrasonic rod
Hollow Ultrasonic Rod


- Dimension:
· Total length: 868mm
· Maximum diameter: 73mm

- Power:
· Ultrasonic peak power: 2000W
· Electric power: 800W
· Input voltage: 220V 50HZ

- Frequency: 26KHZ

- Quantity of transducer: Two

- Environment requirement:
· Temperature: 0 ~ 50 ℃
· Relative humidity: Less than 85%
· Working pressure: Less than 0.6 Mpa

- Meterial: Stainless steel 304/316L


※ Hollow ultrasonic rod can be used in non acidic liquid. If the ultrasonic rod transducers are used for continuous work, the temperature of liquid must be below 40 ℃. The length of ultrasonic rod can be adjusted to meet the requirement of customer.
