Chinese Manufacturer & Supplier of Piezo Atomizing Transducers With Micropores

Microporous Atomization Transducers

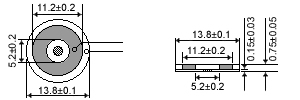

YT13.8-152 Microporous Atomizing Transducers
- Dimensions: Φ 13.8mm × 0.75mm
- Input voltage: 3 ~ 12 V
- Resonant frequency: 152 ± 5KHZ
- Resonant impedance: ≤ 200Ω
- Static capacitance: 1500 ± 20%pf
- Spray volume: 40 ~ 60ml / h
- Service life: ≥ 3000h
microporous atomizing pieces
microporous atomization transducers


YT13.8-162 Microporous Atomizing Transducers

- Dimensions: Φ 13.8mm × 0.75mm
- Input voltage: 3 ~ 12 V
- Resonant frequency: 162 ± 5KHZ
- Resonant impedance: ≤ 180 Ω
- Static capacitance: 1600 ± 20%pf
- Spray volume: 40 ~ 60ml / h
- Service life: ≥ 3000h
microporous atomizing pieces

microporous atomization transducers


YT16-108 Microporous Atomizing Transducers

- Dimensions: Φ 16mm × 0.75mm
- Input voltage: 3 ~ 12 V
- Resonant frequency: 108 ± 5KHZ
- Resonant impedance: ≤ 400 Ω
- Static capacitance: 3000 ± 20%pf
- Spray volume: 40 ~ 60ml / h
- Service life: ≥ 3000h
microporous atomizing pieces

microporous atomization transducers

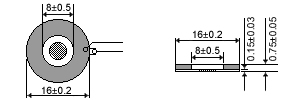

YT16-113 Microporous Atomizing Transducers

- Dimensions: Φ 16mm × 0.75mm
- Input voltage: 3 ~ 12 V
- Resonant frequency: 113 ± 5KHZ
- Resonant impedance: ≤ 250 Ω
- Static capacitance: 3200 ± 20%pf
- Spray volume: 40 ~ 60ml / h
- Service life: ≥ 3000h
microporous atomizing pieces

microporous atomization transducers

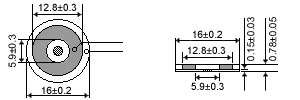

YT16-140 Microporous Atomizing Transducers

- Dimensions: Φ 16mm × 0.78mm
- Input voltage: 3 ~ 12 V
- Resonant frequency: 140 ± 5KHZ
- Resonant impedance: ≤ 300 Ω
- Static capacitance: 1900 ± 20%pf
- Spray volume: 40 ~ 60ml / h
- Service life: ≥ 3000h
microporous atomizing pieces

microporous atomization transducers

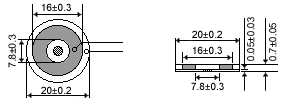

YT20-108 Microporous Atomizing Transducers

- Dimensions: Φ 20mm × 0.70mm
- Input voltage: 3 ~ 12 V
- Resonant frequency: 108 ± 5KHZ
- Resonant impedance: ≤ 300 Ω
- Static capacitance: 3000 ± 20%pf
- Spray volume: 60 ~ 100ml / h
- Service life: ≥ 3000h
microporous atomizing pieces

microporous atomization transducers


YT20-113 Microporous Atomizing Transducers

- Dimensions: Φ 20mm × 0.80mm
- Input voltage: 3 ~ 12 V
- Resonant frequency: 113 ± 5KHZ
- Resonant impedance: ≤ 150 Ω
- Static capacitance: 3500 ± 20%pf
- Spray volume: 60 ~ 100ml / h
- Service life: ≥ 3000h
microporous atomizing pieces

microporous atomization transducers
