China Manufacturer & Supplier Of High Power Ultrasonic Equipment For Homogenization

      Disc type Industrial Ultrasonic Homogenizer

Units Of Industrial Ultrasonic Homogenizer

Tubular Industrial Ultrasonic Homogenizer



Ultrasonic Homogenizers



• Application

- Fuel: emulsification of fuel oil in water, to save fuel and reduce exhaust pollution.
- Food: emulsification of sugar in milk, butter emulsification for senior lactose, the raw material dispersion for sauce manufacturing.
- Cosmetic: wax emulsification,oil dispersion for production of detergent, shampoo, lotion.
- Lubricant: rolling oil emulsification,cooling of metal sheets rolling, emulsified liquid for lubrication.
- Coating: waterproof coating emulsification, waterproof additive emulsification, resin solution emulsification.
- Chemical industry: accelerate the rate of chemical reaction, dispersion of fluorescent materials and photosensitive materials.
- Medical industry: extracting of traditional chinese medicine.

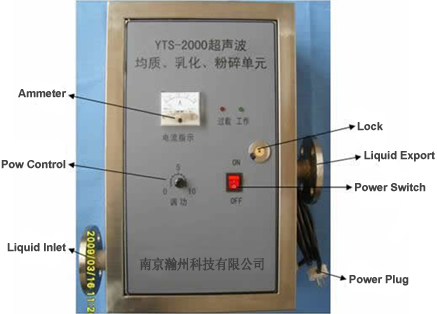

• Units Of Industrial Ultrasonic Homogenizer


units of industrial ultrasonic homogenizer


1) Specification:
- Input voltage: AC220V ± 10﹪, 50HZ
- Frequency: 20KHz
- Box size: 520×315×170mm
- Connecting flange: GB DN32 PN16 304
- Spacing of flange end in horizontal direction: 425mm
- Spacing of flange end in vertical direction: 165mm
- Working environment: Temperature 0-50℃, relative humidity ≤85%
- Working pressure in pipeline: ≤0.6MPa
- Ultrasonic peak power: 2000W
- Application: homogeneity, emulsification and disruption

2) Installation & use:
- The units of ultrasonic Homogenizer should be installed between the pipelines, Please ensure the high seal performance.
- Ensure that the ultrasonic homogenizer is horizontal and placed in a dry ventilated place.
- Power plug of ultrasonic homogenizer has to be connected to a grounded one-phase receptacle.
- After confirm that the liquid flows from export of ultrasonic homogenizer, turn on the power switch to start ultrasonic.
- Capable to adjust the power according to requirement.
- The green light is on when ultrasonic homogenizer is normal running. The red light shows that the overload or overtemperature, in this case the total power will be cut off automatically. We should restart after 5 minutes.
- After working, turn off the power.

※ The unit of ultrasonic homogenizer can be operated continuously, and several units can be used together for the best results.

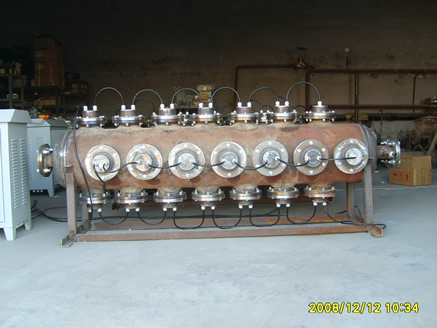

• Tubular Industrial Ultrasonic Homogenizer
tubular industrial ultrasonic homogenizer


- The ultrasonic peak power of single ultrasonic homogenizer can reach more than thousands of watt.
- Over-current and over-voltage protection, to ensure the security of system.
- Tubular ultrasonic homogenizer has fuctions of soft start and under-voltage protection.
- Automatic frequency tracking, to avoid the fluctuation of load impedance due to the change of temperature and working fluid.
- Tubular ultrasonic homogenizer can keep constant power operation, with good results.
- The power supply of tubular ultrasonic homogenizer has the advantages of small volume, light weight, high efficiency.
- With reasonable structure, easy for ventilation and heat dissipation, reliable for continuous operation.
- The ultrasonic generator consists of small power units, the total power can up to tens of kw. If one power failure, other units can still work normally, also easy to repair damaged units.

tubular industrial ultrasonic homogenizer  tubular industrial ultrasonic homogenizer

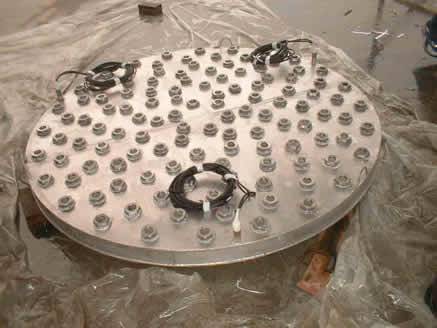

• Disc Type Industrial Ultrasonic Homogenizer


disc type industrial ultrasonic homogenizer


- Integration design of homogenization, antiscale, filtration, multi-use of one machine.
- The frequency of transducers ranges from 28khz to 60khz, good processing effect.
- With the design of disc structure and inner support pipe, plate-type ultrasonic homogenizers can bear greater pressure.
- Disc type ultrasonic homogenizers use separate control cabinet, easy for corrective maintenance.
- Ultrasonic generator has function of power control, overload warning, etc.
- Convenient to link up ultrasonic homogenizer with other production line, suitable for both Intermittent and continuous operation.
- With thickening quality stainless steel, it makes ultrasonic homogenizer more resistant to corrosion.
